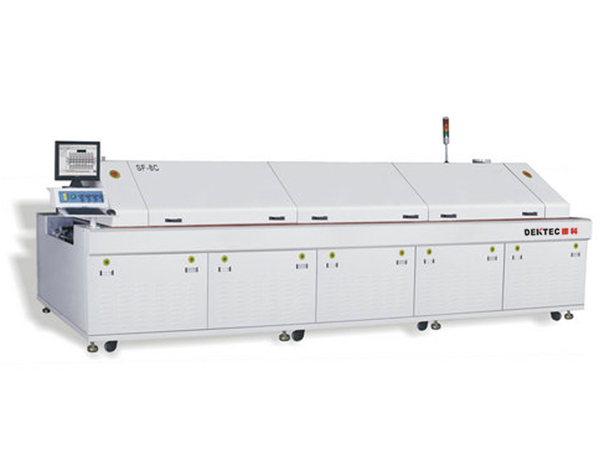

reflow oven SF8/SF 10

Name:reflow oven SF8/SF 10

Details

SF8/SF10 Lead Free Reflow Oven Specifications



Machine

SF-8C

SF-10C

Heating zones

upper 8 zones

upper 10 zones

bottom 8 zones

bottom 10 zones

Heating tunnel

2900mm

3600mm

Dimension

L5040*1430*1450

L5800*1430*1450

Net weight

about 1700Kg

about 1900Kg

General power

64KW

75KW

Power consumption

Approx.7--15KW

Approx.9--19KW

Rising time

15 minutes

18 minutes

Controlling type

PC + PLC controlling

Heating method

Fully forced air convection

Temperature controlling

PID close-loop control, SSR drive

Temperature range

Ambient---350

Temperature accurancy

±1

Temperature uniform

±2

Cooling

Two cooling zones, industrial chiller outside

Conveyor method

Mesh belt and chain conveyor

Conveyor height

900±20mm

Mesh belt width

500mm

Max PCB width

450mm

Width adjustment

Electrical switch

PCB clearance

30mm

Conveyor direction

Left to right

Conveyor speed

0-1300mm/min

Hook lift

Electrical screw pole

Power supply

380v,3ph,50hz
