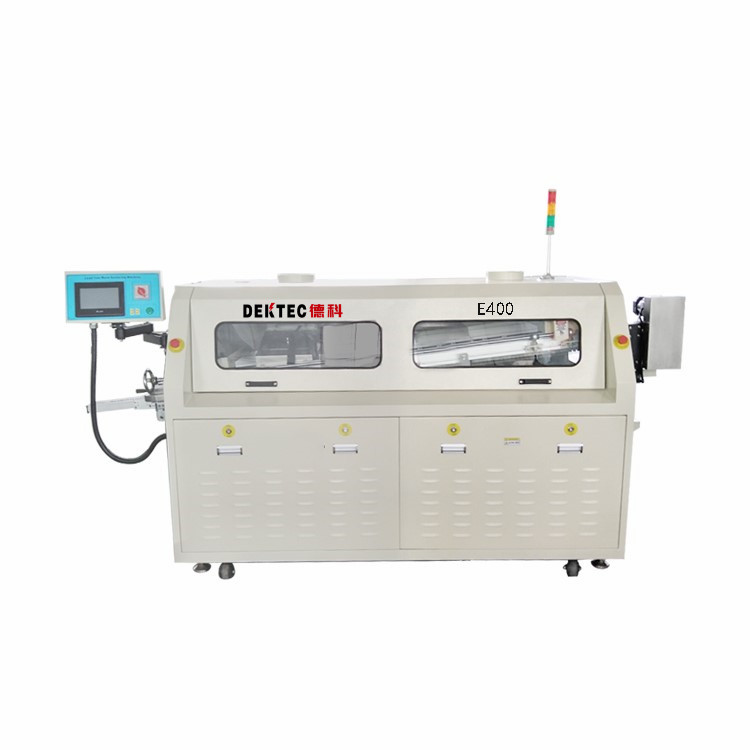

E400 Lead Free Wave Solder Machine Features

● PLC and touchscreen controlling system which can save more than 50 sets parameters. User-frienly

interface is easy to be operated,temperature can be set/saved/modified in touchscreen.

● The high quality sprayer provides perfect atomization performance of the flux.It is driven by stepper motor and rail / slider, moving speed set on touchscreen, stepper driver and PLC control system make a smooth and low noisy movement.

● Forced air convection preheat zone creates enough uniform heat for the PCB.Specially designed preheating system makes maintenance easier,motor and blower can be dismantled easily from bottom,heater can be move out from rear side like drawer.

● Adopt cast iron heater for the solder pot, its mounted outside of the solder pot. This new assembling way prolongs  the lifetime of the solder pot.

● Dual wave solder pot. Both wave heights are controlled invidually by transducer. Changing the wave height via adjusting the frequency of wave motor's power supply in touchscreen.

● Solder pot is made of Ti material, 100% capable for the lead-free solder.

● Customer can set on and off  time of machine with weekly timer.

● Light&Sound alarm for overheating and emergency stop.

● Ti finger conveyor system, be able to form an in-line through-hole soldering line.

● Customer can choose "L" finger for pallet, or dual hook finger for pcb.

● N2 optional for the solder pot.

E400 Lead Free Wave Solder Machine Specification

 Model

 E400

 PCB width

 5-400MM

Solder pot capacity

 200kg

 Running power/general power

9-10KW/18KW

 Dimension

 2900(L)*1150(W)*1350(H)

 Net weight

 800KG

Controlling system

Touchscreen + PLC

Conveyor motor

 3Ph 220V ,90W

Conveyor speed

 200MM-1800MM/Min

 Flux capacity

 6.5 liter

 Alcohol capacity

4.5 liter

PCB Conveyor direction

Left to right

 Spray method

stepper motor drive,linear rail and slider moving sprayer

 Sprayer

 Japan ST-6

 Preheating zone

1 individual bottom preheating zone

Preheating power

  7.5kw/zone

 Solder pot material

 Fully Ti

Solder pot heater

Cast iron

 Heater power

1.2KW*7PCS

 Wave number

dual waves

Wave type

 Turbulence first wave and Lambda 2nd wave

 Melting time

 60 minutes

 Solder pot lift up&down

 Manual

 Solder pot in&out

 Motorized

 Finger cleaning pump

 1PH 220V 10W

 Finger type

 Dual hook

 Finger material

 Ti

 Solder angle

  5-7°

 Air supply

 3-5BAR

 Power supply

3PH 380V 50HZ
