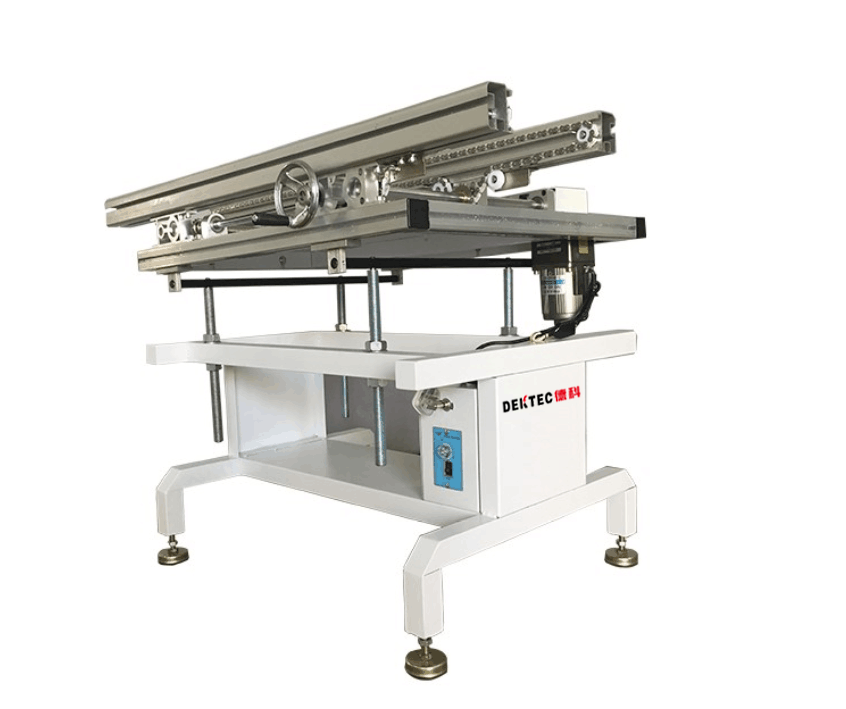

BL-400 wave solder Loader

Name:BL-400 wave solder Loader

Details

BL-400 Loader Specification


  • This unit is used to the transmission of the PCB of wave soldering inlet
  • Speed adjust torque of easy to operate
  • Structure stability
  • Select rectangular welding frame or aluminum profile frame optional
  • Parallel and smooth width adjustment(leadscrew)
  • Convey speed and height adjustment
  • Minimize transmission clearance between conveyor
  • Different sizes available according to the customer
  • Convey type:35B Nylon chain or specify
  • Convey speed:0.5-20m/min or specify
  • Power supply: AC 110 volts or 220 volts ,single phase
  • Power: max 100VA
  • Transport direction: From left to right or right to left




Model

Dimension(L*W*H/mm)

PCB size

Weight(kg)

BL-400 Loader

1000*600*1100

50*50445*330

35

BU-400 Unloader

1200*600*1250

50*50445*330

45
