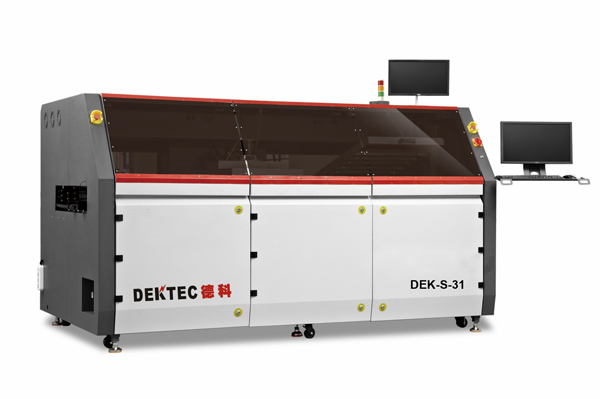

on line selective soldering machine DEK-S-31

Name:on line selective soldering machine DEK-S-31

Details

Specification(selective soldering machine DEK-S-31)


Serial

Item

content

Quantity

1

Controlling system

PC & monitor

1set

Live on monitor camera

motion control

2

Platform motion system

(spray part)

xy motion table

1 set



2 axis equipped with ball screw & linear guild rail

2 axis equipped with servo motor & driver

3

Fluxing system

Imported fluxing jetting valve

1 set



flux tank

 flux pneumatic system

Nozzle automatic cleaning system

4

preheating system

Preheat the hot air,IR heater at bottom

1 set



5

Platform motion system

(Tin Furnace)

xyz motion table

1set



3 axis equipped with ball screw & linear guild rail

3 axis equipped with servo motor & driver

6

Selection Soldering pot

15kg capacity solder pot, impeller, tunnel, servor motor

2 set



solder temperature over heat alarm system

solder temperature controlling system

n2 inline heating system

(内径 4mm x 3pcs, 5mm,6mm ) Standard equipped solder nozzle

7



Conveyor system

Independent step drive of front and rear transport guide rail (spray preheating section)

1 set



Front and rear chain transportation guide (spray preheating section)

Spray section of PCB plate blocking device, preheating section

Independent step drive of front and rear transport guide rail (tin soldering  section)

Front and rear roller transport guide (tin soldering  section)

plate blocking device tin soldering  section

PCB side clamping system

8

Machine chassis

machine frame/cover & painting

1 set



9

Optional

electromagnetic pump



Offline programming
