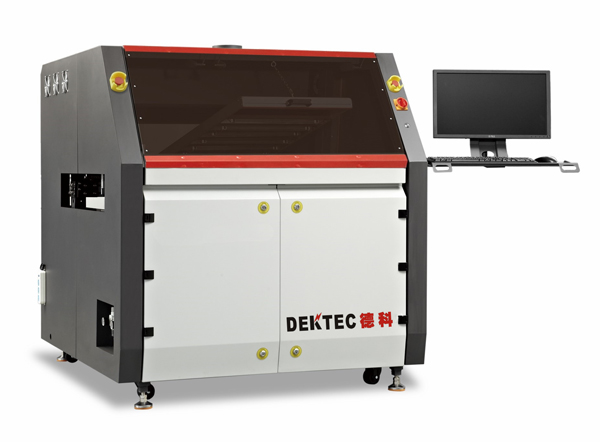

DEK-S-400 selective sloder machine

Name:DEK-S-400 selective sloder machine

Details

Specification(selective soldering machine DEK-S-400)

model

DEK-S-400

crest height

Max:6 mm

Length

1650 mm

·       Crest drive mode:

mechanical pump

Widen

1650 mm

Solder capacity

13KG/pot

height

1650 mm

Soldering Temp.

Max:330

G.Weight

700 KG

Heat-up time

30min/(300)

 transmission system

Positioning speed

X/Y2 - 400 mm/s

Type of transportation

·       Roller/chain



Z2 - 50 mm/s

PCB Widen

100-400 mm

welding precision

±0.25mm

PCB legth

100-400 mm

锡炉加热功率:

1.2KW/锡炉

PCBheadspace

Max:50 mm

Nitrogen technology

PCB bottomspace

Max:30 mm

required pressure

0.6 Mpa

PCB Edges

3 mm

Nitrogen consumption

每锡炉 1.5 m³/h

off the ground

900±20

Particle cleanliness

≥99.999%

Conveyor speed

0.2-10 m/min





PCB Weight

Max:10 kg



助焊剂喷涂模块:

compressed air



pray type

precision wire injection

Air pressure

0.6 Mpa

positioning system

servo drive

consumption

5 M3/H

SPEED

1-400 mm/s

Control system

positionaI accuracy

±0.15mm

PC operation

Windows 7

Soldering flux

1 L

data input

GerberIMAGE

Spraying width

2-8 mm

Programm methed

On Line/off line

Size of nozzle of spray nozzle

130 um





Preheat type

·       Bottom infrared preheating (standard)

electric parameter



·       Top hot air preheating (standard)

Power

3P5W,380VAC



Top infrared  preheating (optional)

frequency

50/60 Hz

Preheating power

7 kw infrared)

power dissipation

20 KW



4 kw  hot air

exhaust air

Temperature range:

室温-250

Duct diameter

¢150mm

Temperature precision

±2

Exhaust ability

300m3/h





Environmental specification/noise level





Environmental temperature

15 - 45





Noise level

65 db(A)
