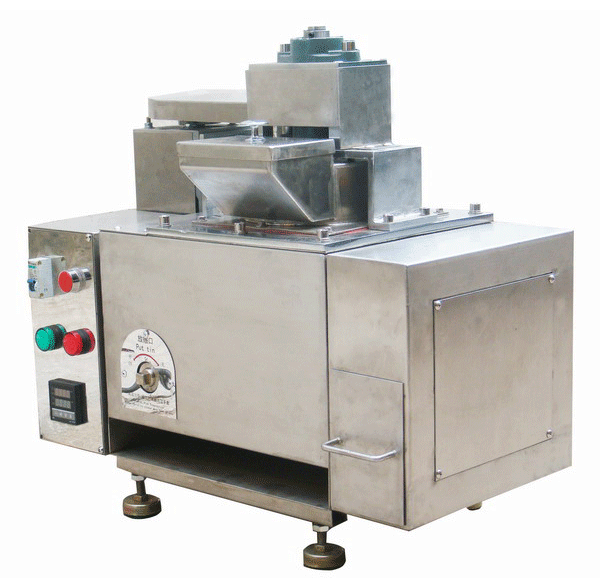

Dross separator

Name:Dross separator

Details
   Up to 81.2% of recycled dross can be saved.
●     The process is finished without adding chemicals, making sure 100% of the same quality is recycled solder.
●     Traditional panel control with brand temperature controller, emergency stop button etc.
●     Full stainless steel structure of the machine.
●     The solder dross separating tank with 25kg capacity is made of Titanium. Avoiding contamination of recycled solder.
●     Solder level alarm system.
●     Manual discharge.
●     Solder and dross powder separated into two individual collection systems.
●     Simple operation, small and light machine for easy transportation.
●     The smoke filter system is optional.

Item

Parameter

Mixing motor

1¢ 220V 60w

Mixing Heating Power

1.5kw

Mixing Capacity of pre molten solder

25kg

Temperature Scope

0-350°C

Heating-up time

50min

Feeding time

Continous3~4kg/15min

Dimension

565mm(L)x280( w)x550mm(H)

Total Power Consumption

1.6KW

Normal running power

0.4KW

Power

1¢ 220V 50HZ

Net Weight

Approx 45kg

RETURN ON INVESTMENT SDS007

Normally the wave solder dross yield changes according the temperature of solder pot, the quantity of soldered PCB, the width of PCB, the in-time solder adding and the wave nozzle’s design. Every day it will generate 3 to 6kg of dross in 8 hours of machine running.

Here we take 4.5kg dross/8hours as average. ($US16/Kg used).

1 wave solder 8 hours running produces   4.5kg dross = 4.5kg x $US16 = $USD72

90% CAN BE SAVED   $US72 x 90% = $US64.80

Take 22 working days per month as reference  $US64.80 x 22 = $US1,425.60

According the above simple accounting, if customer has 2 machines running 2 shifts or 4 wave solder machine running 1 shift per day, investing in an SDS-007 AUTO SOLDER SEPARATOR MACHINE, achieves payback in less than 3 months.
